Svea
Pandion, Pelican, Pegasos – Enervent’s range includes a wide range of air handling units that provide fresh, cooled air to homes. But never before have such volumes of air been compressed into such a compact frame. It can be said that Svea has the same effect and energy efficiency as the Pelican, but a much smaller size.
Small but Fierce

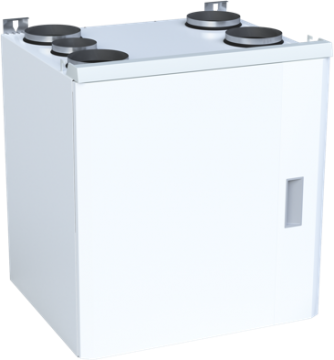

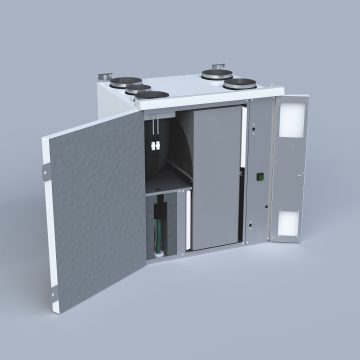

Enervent Svea can be mounted on the wall or in the ceiling. It is an excellent solution for modern residential ventilation thanks to its size and performance. However, the compact size does not mean that the features have been reduced – Svea has a rotary heat exchanger, an 800 W after-heating coil and energy-efficient DC fans.
Cooling on Top of Everything Else
The Enervent Svea is a very efficient ventilation unit in its size range, but we came up with a way to make it even better. Svea is designed to be modular so that a Svea Cooler radiator module can be placed on top of the ventilation unit as required. The module can include an evaporator coil, water heating coil or water cooling coil. The module only increases the height of the unit and can be retrofitted.
Duct connections
Control options
 eAir | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | Through operation modes | ||||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Automatic | ||||||||
| KNX connectivity | |||||||||
| Commissioning parameters view | |||||||||
| On-off control for CHG brine pump | |||||||||
| On-off control for GWC damper motor | |||||||||
| Control for CHG coil 3-way valve motor | |||||||||
| Exercising of brine pumps during standby | |||||||||
| Exercising of the HRW during standby | |||||||||
| Modbus RTU | |||||||||
| Modbus TCP/IP | |||||||||
| Stepless control of heat recovery | |||||||||
| Control of damper motors | |||||||||
| Control of electrical pre-heater | |||||||||
| Control of water pre-heater/cooler | |||||||||
| Control of water heater | |||||||||
| Eco mode | |||||||||
| Control of water cooler | |||||||||
| Boosting function | |||||||||
| Measurements view | |||||||||
| Carbon dioxide boosting | |||||||||
| Time programs | |||||||||
| Summer night cooling | |||||||||
| Temperature boosting | |||||||||
| Compensation for hood/central vacuum cleaner | |||||||||
| Constant duct pressure mode | |||||||||
| Internet user interface | |||||||||
| Time extension mode | |||||||||
| Setup wizard | |||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Models
| Product number | Unit |
|---|---|
| P20 201 0002 | Svea eAir E |
