Pinion
Pinion

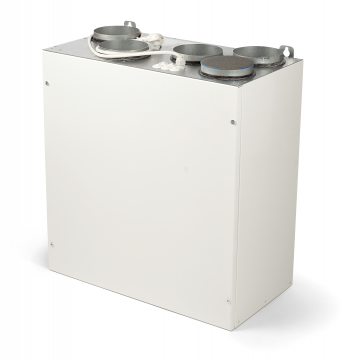

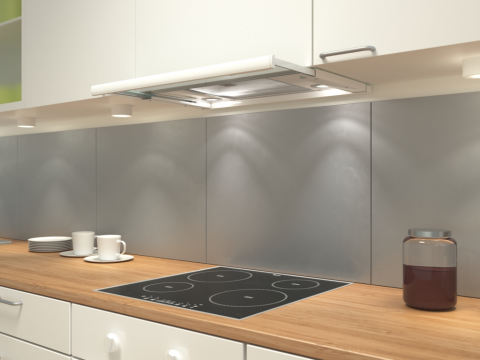

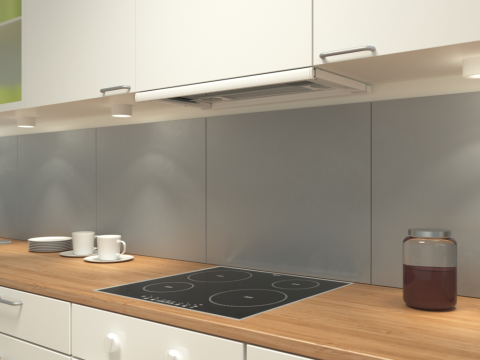

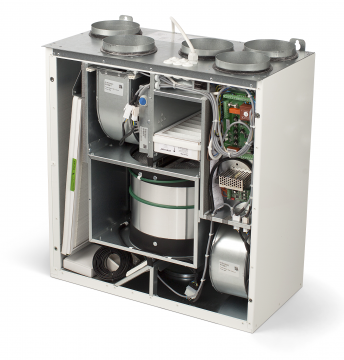

The Enervent Pinion unit is a very silent small unit best suited for apartments and other small spaces. The unit offers multiple installation options; it can be used as a stand-alone unit or it can be installed jointly with a cooker hood. The unit and the cooker hood can either be physically connected or they can be in different spaces and connected by a duct. You can get acquainted with Enervent’s selection of cooker hoods here. The Pinion unit can be connected to many different external controls and it makes a cost effective choice for big projects in i.e. apartment buildings.

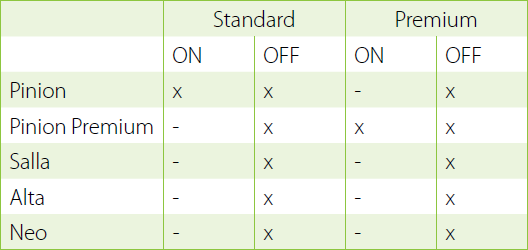

Configuration options for the Cooker Hood
Duct connections
The Pinion is available in both left-handed and right-handed duct connection layouts.
Control options
 eWind | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | 4-step | ||||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Automatic | ||||||||
| KNX connectivity | |||||||||
| Commissioning parameters view | |||||||||
| On-off control for CHG brine pump | |||||||||
| On-off control for GWC damper motor | |||||||||
| Control for CHG coil 3-way valve motor | |||||||||
| Exercising of brine pumps during standby | |||||||||
| Exercising of the HRW during standby | |||||||||
| Modbus RTU | |||||||||
| Stepless control of heat recovery | |||||||||
| Control of damper motors | |||||||||
| Control of electrical pre-heater | |||||||||
| Control of water pre-heater/cooler | |||||||||
| Control of water heater | |||||||||
| Eco mode | |||||||||
| Control of water cooler | |||||||||
| Boosting function | |||||||||
| Measurements view | |||||||||
| Carbon dioxide boosting | |||||||||
| Compensation for hood/central vacuum cleaner | |||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Ø
Ducts
Ø 125 mm
Width
598 mm
Height
630 mm
Depth
320 mm
Weight
53 kg
Install on wall or ceiling
Brochures
Drawings
Ecodesign
Models
| Product number | Unit |
|---|---|
| P13 301 0003 | Pinion eWind E right |
| P13 301 0003V | Pinion eWind E left |
| P13 301 0004 | Pinion eWind E Arctic right |
| P13 301 0004V | Pinion eWind E Arctic left |
| P13 302 0003 | Pinion Premium eWind E right |
| P13 302 0003V | Pinion Premium eWind E left |
