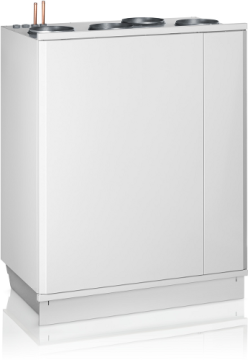

The Enervent Pelican unit is best suited for large detached houses or public spaces, like offices.
Pelican is the smallest unit in our range that can be fitted with a

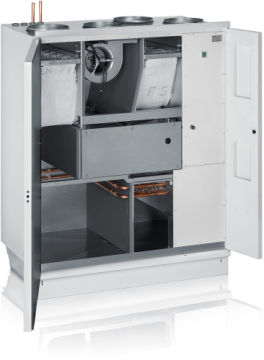

built-in extract air heat pump (HP). All heating and cooling coils, as well as the heat pump unit, are built-in to the unit. The Pelican HP with a built-in heat pump cools and heats the air on demand. The cooled and heated air is evenly distributed throughout the building via the ventilation ducts (not local point formed distribution, as
in traditional heat pumps).
Duct connections
The Pelican is available with a right-handed duct connection layout.
Control options
 eAir |  eWind | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | Through operation modes | 4-step | |||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Automatic | Automatic | |||||||
| KNX connectivity | |||||||||
| Commissioning parameters view | |||||||||
| On-off control for CHG brine pump | |||||||||
| On-off control for GWC damper motor | |||||||||
| Control for CHG coil 3-way valve motor | |||||||||
| Exercising of brine pumps during standby | |||||||||
| Exercising of the HRW during standby | |||||||||
| Modbus RTU | |||||||||
| Modbus TCP/IP | |||||||||
| Stepless control of heat recovery | |||||||||
| Control of damper motors | |||||||||
| Control of electrical pre-heater | |||||||||
| Control of water pre-heater/cooler | |||||||||
| Control of water heater | |||||||||
| Eco mode | |||||||||
| Control of water cooler | |||||||||
| Boosting function | |||||||||
| Measurements view | |||||||||
| Carbon dioxide boosting | |||||||||
| Time programs | |||||||||
| Summer night cooling | |||||||||
| Temperature boosting | |||||||||
| Compensation for hood/central vacuum cleaner | |||||||||
| Constant duct pressure mode | |||||||||
| Internet user interface | |||||||||
| Time extension mode | |||||||||
| Setup wizard | |||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Ø
Ducts
Ø 200 mm
Width
998 mm
Height
1270 mm
Depth
590 mm
Weight
125 kg
Install on floor
Models
| Product number | Unit |
|---|---|
| P05 211 0002 | Pelican eAir E |
| P05 211 0003 | Pelican eAir E-CG |
| P05 211 0006 | Pelican eAir W |
| P05 211 0007 | Pelican eAir W-CG |
| P05 210 0002 | Pelican HP eAir |
| P05 210 0003 | Pelican HP-E eAir |
| P05 301 0002 | Pelican eWind E |
| P05 301 0003 | Pelican eWind E-CG |
| P05 301 0006 | Pelican eWind W |
