Neo
Neo

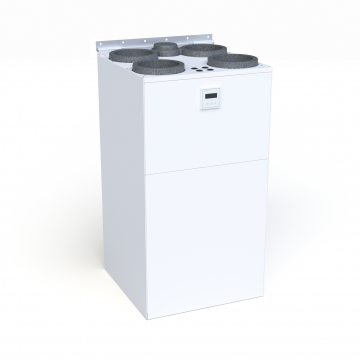

The Enervent Neo unit is best suited for medium sized detached houses or apartments. It is also well suited for public spaces, where a smallish air amount is required.

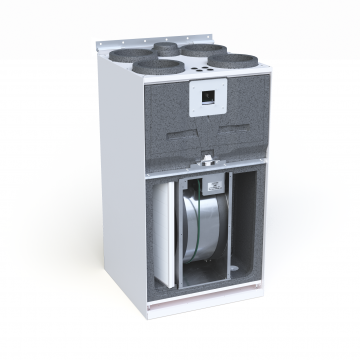

Neo is a new kind of a ventilation unit inside out. Its insulation material makes the unit very lightweight and especially energy efficient (Eco Design A+).

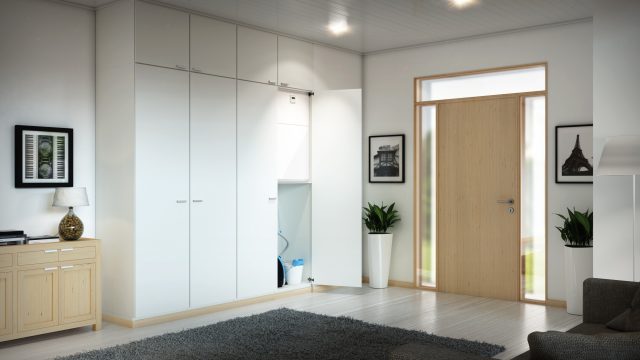

Lightweight and slim Neo is the only unit in the market that fits in a standard 60 cm cabinet. It is easy to place the unit out of sight without need for a separate technical space.
Neo has a cooker hood connection that can be opened when necessary. You can get acquainted with Enervent’s selection of cooker hoods here.
Duct connections
The Neo is available in both left-handed and right-handed duct connection layouts.
Control options
 eWind | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | 4-step | ||||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Automatic | ||||||||
| KNX connectivity | |||||||||
| Commissioning parameters view | |||||||||
| On-off control for CHG brine pump | |||||||||
| On-off control for GWC damper motor | |||||||||
| Control for CHG coil 3-way valve motor | |||||||||
| Exercising of brine pumps during standby | |||||||||
| Exercising of the HRW during standby | |||||||||
| Modbus RTU | |||||||||
| Stepless control of heat recovery | |||||||||
| Control of damper motors | |||||||||
| Control of electrical pre-heater | |||||||||
| Control of water pre-heater/cooler | |||||||||
| Control of water heater | |||||||||
| Eco mode | |||||||||
| Control of water cooler | |||||||||
| Boosting function | |||||||||
| Measurements view | |||||||||
| Carbon dioxide boosting | |||||||||
| Compensation for hood/central vacuum cleaner | |||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Ø
Ducts
Ø 160 mm
Width
540 mm
Height
1035 mm
Depth
556 mm
Weight
58 kg
Install on wall
Models
| Product number | Unit |
|---|---|
| P16 301 0002 | Neo eWind E right |
| P16 301 0002V | Neo eWind E left |
