LTR-5 Z Cooler
Enervent LTR-5 Z Cooler is a ventilation unit with integrated compressor cooling unit for ventilation of single-family houses, terraced houses and offices. The horizontal ventilation device is particularly suitable for spaces where high ventilation solutions are not possible.
The advantage of the LTR-5 Z Cooler is that cooling is achieved without drafts. The cold is evenly distributed along the ventilation ducts in all rooms with a supply air valve. This is a clear advantage compared to, for example, a traditional air source heat pump, which only cools the room where the indoor unit is located. The LTR-5 Z Cooler also does not need a separate outdoor unit.

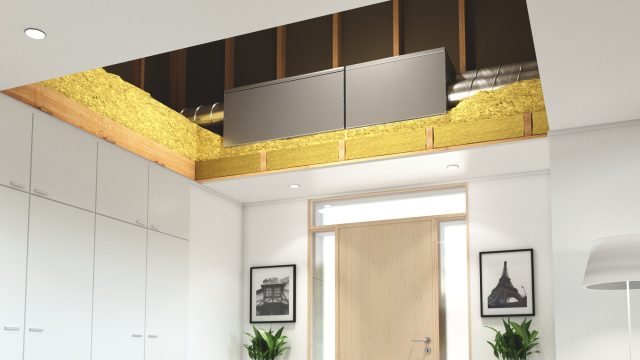

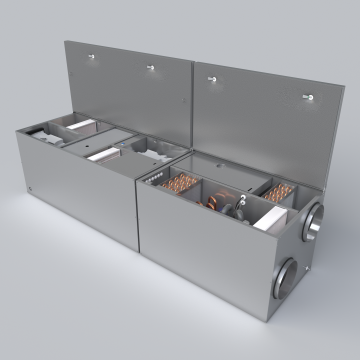

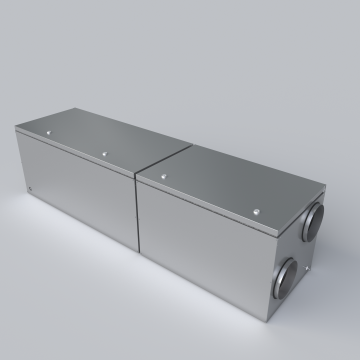

The horizontal ventilation unit LTR-5 Z and the integrated Cooler module can be installed on the roof, attic, false ceiling or technical space, providing flexibility in the use of the space. The cooler module is placed next to the ventilation unit. The cooler module can also be retrofitted to previously purchased LTR 5 Z units as well as to LTR-3 and LTR-7 models.
Duct connections
Control options
 eAir | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | Through operation modes | ||||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Automatic | ||||||||
| KNX connectivity | |||||||||
| Commissioning parameters view | |||||||||
| On-off control for CHG brine pump | |||||||||
| On-off control for GWC damper motor | |||||||||
| Control for CHG coil 3-way valve motor | |||||||||
| Exercising of brine pumps during standby | |||||||||
| Exercising of the HRW during standby | |||||||||
| Modbus RTU | |||||||||
| Modbus TCP/IP | |||||||||
| Stepless control of heat recovery | |||||||||
| Control of damper motors | |||||||||
| Control of electrical pre-heater | |||||||||
| Control of water pre-heater/cooler | |||||||||
| Control of water heater | |||||||||
| Eco mode | |||||||||
| Control of water cooler | |||||||||
| Boosting function | |||||||||
| Measurements view | |||||||||
| Carbon dioxide boosting | |||||||||
| Time programs | |||||||||
| Summer night cooling | |||||||||
| Temperature boosting | |||||||||
| Compensation for hood/central vacuum cleaner | |||||||||
| Constant duct pressure mode | |||||||||
| Internet user interface | |||||||||
| Time extension mode | |||||||||
| Setup wizard | |||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Models
| Product number | Unit |
|---|---|
| LTR-5 Z Cooler eAir E |
