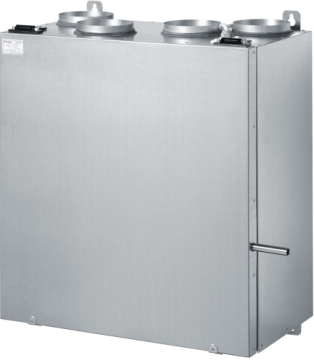

Liggolo
Liggolo
A suitable ventilation solution is selected in line with the target and the preferences of the inhabitants, which thus also determine the model to be installed. All Enervent ventilation units are ready to be installed. Many of the steps in the installation do require special tools and expertise,
so Ensto recommends leaving the installation work to an HVAC specialist.
Duct connections
The Liggolo is available in both left-handed and right-handed duct connection layouts.
Control options
 eWind |  EC | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | 4-step | 4-step | |||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Automatic | Manual | |||||||
| KNX connectivity | |||||||||
| Commissioning parameters view | |||||||||
| On-off control for CHG brine pump | |||||||||
| On-off control for GWC damper motor | |||||||||
| Control for CHG coil 3-way valve motor | |||||||||
| Exercising of brine pumps during standby | |||||||||
| Exercising of the HRW during standby | |||||||||
| Modbus RTU | |||||||||
| Stepless control of heat recovery | |||||||||
| Control of damper motors | |||||||||
| Control of electrical pre-heater | |||||||||
| Control of water pre-heater/cooler | |||||||||
| Control of water heater | |||||||||
| Eco mode | |||||||||
| Control of water cooler | |||||||||
| Boosting function | |||||||||
| Measurements view | |||||||||
| Carbon dioxide boosting | |||||||||
| Compensation for hood/central vacuum cleaner | |||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Ø
Ducts
Ø 125 mm
Width
598 mm
Height
630 mm
Depth
320 mm
Weight
46 kg
Install on ceiling
Models
| Product number | Unit |
|---|---|
| P09 002 0013 | Liggolo eco ECE right |
| P09 002 0013V | Liggolo eco ECE left |
| Liggolo eWind E right | |
| Liggolo eWind E left |
