Alta

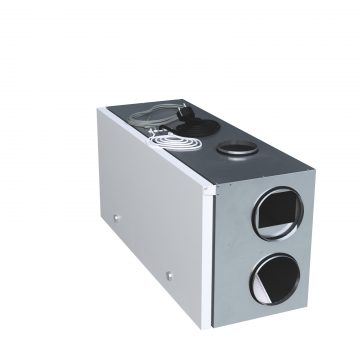

Enervent Alta is designed to be particularly easy to install. Due to its design and low noise level, it doesn’t need its own technical space. Also, the power cord, control panel cable and cooker hood indication cable are brought out of the unit at the factory, there is no need to open the unit when installing it. Installers love it!

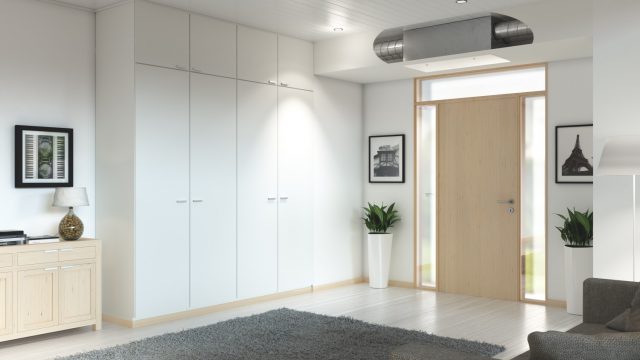

Enervent Alta is easy to place, not only because its shape, but also because of its low noise level. For this device you do not need a separate technical space or closet. You can install it for example in a false ceiling in the living quarters.
Alta is ready to be connected to the cooker hood in the kitchen. No separate extract air duct is needed and you will save space where it is never enough. You can get acquainted with Enervent’s selection of cooker hoods here.
Duct connections

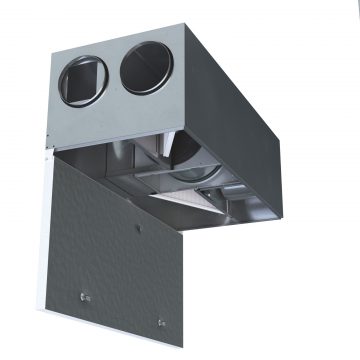

The Alta unit can be installed either with the hatch upwards, downwards or to the side. When installing the unit with the hatch to the side, it can be placed on either side. The hatch is hinged. It is not allowed to install the unit standing upright with the duct connections vertically.
Control options
 eWind | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fan speed settings | 4-step | ||||||||
| Supply air temperature set point | |||||||||
| Control of electrical after heater | |||||||||
| Over pressure mode | |||||||||
| Alarm and maintenance reminder | |||||||||
| Humidity boosting | |||||||||
| Possibility to connect two panels to one unit | |||||||||
| Cooling recovery | Automatic | ||||||||
| KNX connectivity | |||||||||
| Commissioning parameters view | |||||||||
| On-off control for CHG brine pump | |||||||||
| On-off control for GWC damper motor | |||||||||
| Control for CHG coil 3-way valve motor | |||||||||
| Exercising of brine pumps during standby | |||||||||
| Exercising of the HRW during standby | |||||||||
| Modbus RTU | |||||||||
| Stepless control of heat recovery | |||||||||
| Control of damper motors | |||||||||
| Control of electrical pre-heater | |||||||||
| Control of water pre-heater/cooler | |||||||||
| Control of water heater | |||||||||
| Eco mode | |||||||||
| Control of water cooler | |||||||||
| Boosting function | |||||||||
| Measurements view | |||||||||
| Carbon dioxide boosting | |||||||||
| Compensation for hood/central vacuum cleaner | |||||||||
| Show more features | |||||||||
| Show less features | |||||||||
This feature is always included
This feature is available with extra equipment
Datasheet
Models
| Product number | Unit |
|---|---|
| P17 301 0002 | Alta eWind E right |
| P17 301 0002V | Alta eWind E left |
